Schneider Electric 施耐德电气中压开关柜和组件Medium-Voltage Switchgear and Components
* Catalog – 01

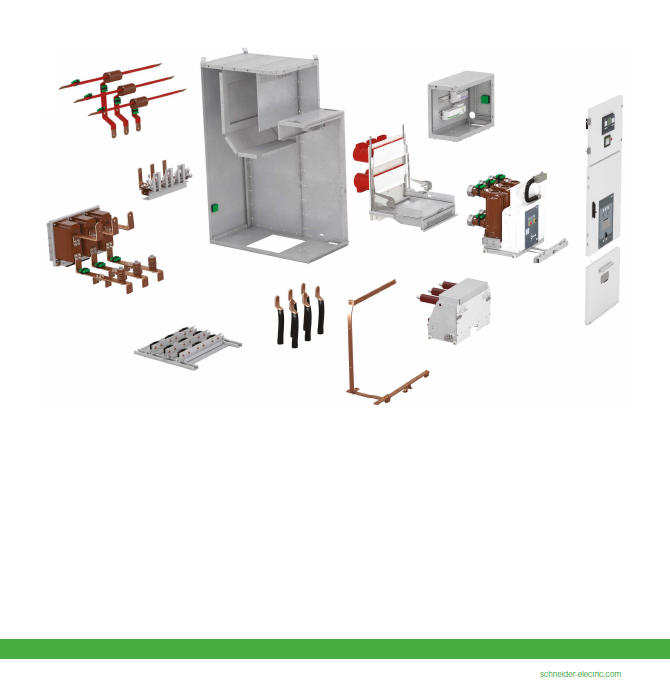

MV Indoor components
FPX / LF / LFP
ISF2
FP / SF
HVX
Evolis
VXC
VAH
BLV
PMX cradle (with HVX, FPX, CVX,…)
NEX cradle (with Evolis)
GFA
Rollarc
CBX, CVX, CLX, CPX
MV Outdoor components
EOX
EAX
VOX
GIE
PCOB
MV Switchgear (Railway application)
VXA-VXB
PAD
WI / WI-G / CBGS-2
SDR, NE, TILF
22CB
CBR
AIS – Air Insulated Switchgear
PIX
PIX MV
PIX Compact
PIX High
MCset123
MCset4
NEX24
RoNEX
VISAX / VISAX
Compact
GenieEvo
PIX (double busbar)
WBD (double busbar)
PIB
PI
DNF7, PIX 36, AMS,
F400
Masterclad
Alliance
PIX MCC
Motorpact Full Voltage
Motorpact
Reduced Voltage
Motorpact S3
Motorpact Full Voltage 720A
Switchgear Control
Motor starter GEMSTART 5.4
Intelligent Monitoring & Control GEMVIEW, ILIS,
Control & Management GemControl
GIS – Gas Insulated Switchgear
GMA
GHA (WS-G)
WSA/WSB
CBGS-0
CBGS-2
WIA / WIB
FP SF6 circuit breaker.
FPX SF6 circuit breaker.
ISF2 SF6 Furnace circuit breaker – Switchboard
LF SF6 circuit breaker
LFP SF6 circuit breaker
SF1 SF6 circuit breaker
SF2 SF6 circuit breaker
BLV Vacuum circuit breaker
Evolis 17.5 kV Vacuum circuit breaker
Evolis 24 kV Vacuum circuit breaker
Evolis HP Vacuum circuit breaker
HVX Vacuum circuit breaker
HVX Compact Vacuum circuit breaker
HVX embedded pole Vacuum circuit breaker
HVX embedded pole Vacuum circuit breaker
VAH Vacuum circuit breaker
VXC Vacuum circuit breaker
PMX cradle
• Cradle based on PIX & PIX Motor Control Center.
• For FPX SF6 circuit breaker, HVX vacuum circuit
breaker, CVX vacuum contactors, UTX, MTX.
• Up to 24kV, 3150A, 40 kA.
• 3-poles.
• Complies with IEC standards.
NEX cradle
• Cradle based on Nex cubicle.
• For Evolis range.
• Available as “ready to assemble kit” for up to
17kV and assembled version for 24kV.
• Complies to IEC standards.
GFA SF6 contactor.
• From 7.2 to 12kV.
• SF6 technology.
• Magnetic-holding version.
• Mechanical latch-in control device version.
• Designed for air-insulated switchgear.
• Fixed or drawing-out units
• Complies with IEC standards and other national standards
Rollarc SF6 contactor.
• Up to 12kV, 400A, AC4, 8kA (50kA in
conjunction with fuses).
• Magnetic holding and mechanical latch-in
version. For fixed or withdrawable air insulated
switchgear air insulated switchgear.
• Adapted to fit air-insulated switchgear MCset.
• Conventional spring mechanism..
• Complies with IEC standards.
CBX Vacuum contactor.
• Vacuum-switching technology
• 12kV, 315A, AC4.
• 7.2kV, 400A, AC4.
• Up to 3 million operations.
• Single-phase version.
• Special version for capacitor banks.
• Simple design for high reliability.
• Low maintenance.
• Complies with IEC standards.
CLX Vacuum contactor.
• Vacuum-switching technology.
• 7.2kV, 400A, AC4.
• Slim line version.
• Long life.
• Simple design for high reliability.
• Low maintenance.
• Complies with IEC standards.
CVX Vacuum contactor and fuse
holder as withdrawable unit.
• CVX7 up to 7.2kV.
• Operating current 400A (AC4 duty).
• For cubicle width 400mm.
• With DIN or BS fuses.
• With contactor CBX inside.
• 1,000,000 mechanical switching cycles.
• Optional with aux. VT or mechanical latch.
• Used in PIX.
• Vacuum contactor and fuse
holder as withdrawable unit.
• CVX12 up to 12 kV.
• Operating current up to 315 A (AC4 duty)
• For cubicle width 650mm in PIX and 800 mm
in PIX High.
• With DIN or BS fuses.
• With contactor CBX inside.
• 1,000,000 mechanical switching cycles.
• Optional mechanical latch.
CPX Vacuum contactor.
• Vacuum-switching technology
• 3.6kV, 400A, AC4.
• Ease of installation.
• Long life.
• Simple design for high reliability.
• Low maintenance.
• Complies with IEC standards.
EAX Dog house circuit breaker
EOX Dog house circuit breaker
EOX MAGnetic Dog house circuit breaker
EVR V Free Standing Medium Voltage Vacuum Station Breaker
FVR Station Breaker Free standing medium voltage vacuum station breaker
VOX Vacuum contactor
GIE Outdoor SF6 circuit-breaker
PCOB Live tank circuit breaker
MV Air Insulated Switchgear (AIS)
MCset 123
• Air Insulated Switchgear.
• LSC2B-PM.
• The MCset 123 rating version with 3 metallic
compartments.
• Up to 17.5kV, 50kA, 4000A.
• Robust construction.
• Compact design.
• No ventilation openings on the front of
the cubicle.
• Single busbar (SBB).
• Withdrawable vacuum circuit breaker: Evolis
or SF6 circuit breaker : LF
• Withdrawable vacuum contactor: CTV1 or
SF6 contactor: Rollarc.
• Can be combined with MOTORPACT for
contactor applications.
• Internal arc classification AFL(R) 50 kA 1s
• Complies with IEC standards.
MCset 4
• Air Insulated Switchgear.
• LSC2B-PM.
• The MCset 4 has with 3 metallic
compartments.
• 24kV, 31.5kA, 2500A.
• Robust construction.
• Compact design.
• Single busbar.
• Withdrawable SF6 circuit breaker : SF1/SF2.
• Internal arc classification AFL(R) 25kA/1s-
31.5 kA/ 0.5s.
• Complies with IEC standards.
NEX
• Air Insulated Switchgear.
• Dedicated offer for transfer to partner
• MV indoor switchgear with 3 metallic
compartments.
• Up to 24kV, 40kA, 3150A.
• Single busbar.
• Vacuum breaking technology.
• Rear/bottom entry available.
• Internal arc classification AFL R 25kA 0.5s.
• Complies with IEC / China GB standard.
• Proactive interlocking system.
• Cradle structure for high CB interchangeability
• Special design for technical transfer to facilitate partner manufacturing.
PIX
• Air Insulated Switchgear.
• The UNIVERSAL MV indoor switchgear with
3 metallic compartments.
• Up to 24kV, 40kA, 4000A.
• Single busbar (SBB) and duplex (DBB).
• Vacuum and SF6 breaking technology.
• Available with contactor on withdrawable
truck/ combined with PIX MCC.
• Marine version.
• Rear/top/bottom entry available.
• Compact design.
• Back to wall installation (rear access optional).
• Internal arc classification AFL(R) 40 kA 1s.
• Complies with IEC standards.
• IS limiter option.
PIX Compact
• Air Insulated Switchgear.
• The compact MV indoor switchgear with
3 metallic compartments.
• Up to 17.5kV, 31.5kA, 2500A.
• Single busbar (SBB).
• Vacuum breaking technology.
• Compact design.
• Back to wall installation.
• Internal arc classification AFL(R) 31.5 kA / 1s.
• Complies with IEC standards.
PIX High
• Air Insulated Switchgear.
• The PIX high rating version with 4 metallic
compartments.
• Up to 17.5kV, 50kA, 5000A.
• Robust Construction.
• Compact design.
• No ventilation openings on the front of the cubicle.
• Back to wall installation.
• Single busbar (SBB).
• Vacuum circuit breaker HVX.
• Can be combined with PIXMCC for contactor applications.
• Can be combined with CVX 12 for contactor applications.
• Internal arc classification AFL(R) 50 kA 1s.
• Complies with IEC standards.
• IS limiter option.
PIX MV
• Air Insulated Switchgear.
• 4 metallic compartments.
• Up to 12kV, 25kA, 1250A.
• Compact design.
• Single busbar (SBB).
• Vacuum circuit breaker HVX.
• Internal arc classification AFLR 25kA 0.1s
• Complies with IEC standards and IS requirements.
• In line with Indian Market requirements.
RoNEX
• Air Insulated Switchgear.
• Rolling on floor type.
• MV indoor switchgear with 3 metallic compartments.
• Up to 17.5kV, 40kA, 2500A.
• Single busbar.
• Vacuum and SF6 breaking technology.
• Top/bottom entry available.
• Internal arc classification A FLR 31.5kA 0.5s
• Complies with IEC / Egypt /Russia GOST standard.
• Proactive interlocking system.
• Cassette structure for high CB interchangeability.
• In line with Egypt and Gulf countries requirements.
GenieEvo
• Air Insulated Switchgear.
• Up to 13.8kV, 25kA 3s, 2500A.
• Vacuum fixed de-mountable circuit breaker.
• Screened encapsulated disconnector.
• Solid insulated busbar.
• LSC2A-PM.
• Internal Arc classification AF(LR) 25kA.
• Rear cable box.
• Fully interlocked front cable test access.
• Can be combined with Motorpact.
• Complies with IEC and BS standards.
VISAX
• Air Insulated Switchgear.
• Up to 24kV, 25kA, 2500A.
• Vacuum-isolating circuit breaker BLV.
• Functional components mounted in line.
• Internal arc classification AFL 25 kA 1s.
• LSC 2B-PI (standard version).
• LSC 2A-PI available (UKversion: VISAX-S).
• Complies with IEC standards.
VISAX Compact
• Air Insulated Switchgear.
• Up to 12kV, 25kA, 1250A/2000A, 75kV, BIL (95kV under development).
• Fixed pattern design.
• Vacuum-circuit breaker BLV.
• 3 position isolator/earth switch.
• Functional components mounted in line.
• Rear cable box.
• Internal arc classification AFL 25 kA 1s.
• LSC 2A-PM.
• Complies with IEC standards.
PAUD
• Air Insulated Switchgear.
• Up to 24kV, 25kA, 2000A.
• 25kA, IAC AFLR.
• Fixed vacuum circuit breaker or load break switch.
• Indoor installation.
• Complies with IEC standards.
PIX Double busbar
• Air Insulated Switchgear.
• Up to 17.5 kV.
• Up to 31.5 kA.
• Internal arc classification AFLR 25 kA 1s.
• Up to 3150 A.
• With withdrawable vacuum circuit breaker HVX.
• Indoor installation.
• Extension without busbar outage.
• Complies with IEC standards.
WBD
• Air Insulated Switchgear.
• Up to 12kV, 31.5kA, 2500A (3150A busbar).
• 31.5 kA, IAC AFLR.
• Withdrawable vacuum circuit breaker.
• Indoor installation.
• Extension without busbar outage.
• Complies with IEC standards.
PIB
• Air Insulated Switchgear.
• 12 kV up to 1250A, 25kA-3s.
• 24 kV up to 1250A, 20kA-3s.
• Metal-enclosed 2 metallic compartments.
• With withdrawable vacuum C.B. HVX
• Optional with fused circuit switcher
• Long periods of operation without maintenance.
• Internal arc classification AFL.
• Complies with IEC standards.
PI
• An economical circuit breaker and switch disconnector switchgear.
• 12kV up to 1250A, 25kA-1s.
• 24kV up to 1250A, 20kA-1s.
• Air-insulated, metal-enclosed.
• With withdrawable vacuum C.B. HVX.
• With switch disconnector.
• With contactors up to 12 kV.
• Compatible with PN 600.
• Long periods of operation without maintenance.
• Internal arc classification AFL.
• Complies with IEC standards.
Motor Control Center- Withdrawable type (LSC 2B – PM)
Motorpact Full Voltage
• Air Insulated Switchgear.
• Direct on line motor starting applications.
• LSC2A-IM.
• Motorpact – 3 metallic compartments.
• Up to 7.2kV, 50kA 4s, 3150A, (3800 kW).
• 400 A IEC – 450 A NEMA.
• Robust construction.
• Compact design.
• No ventilation openings.
• Single busbar.
• Withdrawable vacuum contactor.
• Can be combined with MCset, MasterClad,
PIX…if CB required.
• Internal arc classification AFL(R) 50 kA.
• Complies with IEC, NEMA, UL, GOST, IACS standards.
Motorpact Full Voltage 720A (NEMA)
• Air Insulated Switchgear.
• Direct on line motor starting applications.
• LSC2A-IM.
• Motorpact – 3 metallic compartments.
• Up to 7.2kV, 50kA 4s, 3150A.
• 720 A continuous (5600 kW).
• Robust construction.
• Compact design.
• No ventilation openings
• Single busbar.
• Withdrawable vacuum contactor.
• Can be combined with MasterClad for CB applications.
• Internal arc classification AFL(R) 50 kA.
• Complies with IEC, NEMA, UL standards.
Motorpact Reduced Voltage
• Air Insulated Switchgear.
• Reduced voltage motor starting applications.
• LSC2A-IM.
• Motorpact – 3 metallic compartments.
• Up to 7.2kV, 50kA 4s, 3150A.
• 400 A continuous (3800 kW).
• Robust construction.
• Compact design.
• No ventilation openings.
• Single busbar.
• Withdrawable vacuum contactor.
• Can be combined with MCset, MasterClad, PIX…if CB required.
• Internal arc classification AFL(R) 50 kA.
• Complies with IEC, NEMA, UL, GOST, IACS standards.
Motorpact Sequential Smart Start
• Air Insulated Switchgear.
• Reduced voltage “Multiple” motor starting solution.
• LSC2A-IM.
• Motorpact – 3 metallic compartments.
• Up to 7.2kV, 50kA 4s, 3150A.
• 400 A continuous (3800 kW).
• Robust construction.
• Compact design.
• No ventilation openings.
• Double busbar – start and run.
• Withdrawable Vacuum contactor.
• Can be combined with MCset, MasterClad,
PIX…if CB required.
• Internal arc classification AFL(R) 50 kA.
• Complies with IEC, NEMA, UL, GOST, IACS standards.
PIX Motor Control Center (MCC)
• Motor Control Center.
• Up to 7.2 kV, 400A, 40kA and 50kA, busbar current 4000A.
• Internal arc containment up to 40 kA and
50kA for 1 second.
• Direct “line up” with PIX or PIX High circuit breaker cubicles.
• Same operation as in PIX family.
• CVX: withdrawable vacuum contactor and fuse holder.
• With DIN or BS fuses.
• 1,000,000 mechanical switching cycles.
• Internal arc classification AFLR
• Ratings up to:
– Motors 2,700 kW.
– Transformers 3,100 kW.
– Capacitor banks 1,700 kW.
• Controlled and protected by GEMSTART 5.4.
• Complies with IEC standards
Motor Control Center – Fixed type (LSC 2A – PI)
Alliance
• Motor Control Center.
• Up to 12 kV, 1250 A, 25 kA/1s.
• Especially suitable for industrial application,
water treatment and public lighting.
• Vacuum or SF6 contactors, circuit breakers.
• Air-insulated fixed type MCC.
• Complies with IEC standards.
Mainly with circuit breakers > 30 up to 40.5 kV (LSC2B – PM)
DNF7 / AMS
• Air Insulated Switchgear.
• Up to 40.5 kV / 36 kV.
• Up to 31.5 kA.
• Up to 3150 A*.
• With withdrawable SF6 and vacuum circuit breaker.
• Cassette type or floor rolling.
• Indoor.
• Type tests in both Chinese and European laboratories.
• Complies with IEC standards and GB standards.
• IAC 31.5 kA 1s AFLR
• IP4X in standard
F400
• Air Insulated Switchgear.
• LSC2B-PM.
• The F400 rating version with 3 metallic compartments.
• Up to 40.5 kV, 31.5 kA, 2500A.
• Robust construction.
• Compact design.
• Single busbar.
• Withdrawable SF6 circuit breaker: SF1/SF2.
• Internal arc classification AFLR: 25kA/1s -31.5kA/0.5s – 40 kA/0.15s.
• Complies with IEC standards.
PIX 36 overview
• Air Insulated Switchgear.
• Up to 36 kV.
• Up to 25 kA.
• Up to 2000 A.
• IAC 25 kA -1s.
• With withdrawable vacuum circuit breaker HVX overmoulded / SF6 circuit breaker FP.
• Indoor.
• Internal arc classification AFL.
• Complies with IEC standards.
MasterClad
• Air Insulated Switchgear.
• Meets IEEE/ANSI C37.20.2 Metal-Clad
Switchgear.
• Indoor or Outdoor enclosures.
• Sheltered aisles.
• Prefabricated houses.
• Arc Resistant Type 2b C37.20.7.
• 3000A 15kV 50kA (being extended to 63kA in 2011).
• 2750A 27kV 40kA.
• 1200A – 3000A withdrawable VCBs.
• 4000A VCB
PIX A
• Air Insulated Switchgear.
• MV indoor switchgear with 6 metallic compartments.
• Up to 27kV, 50kA, 3000A.
• Single busbar (SBB) and two high
configuration (2 CBs per cubicle).
• Vacuum breaking technology.
• Internal arc resistance.
• Rear/top/bottom entry.
• Compact design.
• Complies with ANSI, CSA, UL standards.
MV Gas Insulated Switchgear (GIS)
GMA 24 kV 125 kV 25 kA Single 1250 A
GMA 24 kV 125 kV 20 kA Double 1250 A
WSA 36 kV 170 kV 31.5 kA Single 3000 A
WSB 36 kV 170 kV 31.5 kA Double 2500 A
GHA 36 kV 170 kV 40 kA Single 2500 A
GHA 40.5 kV 185 kV 31.5 kA Single 2500 A
GHA 36 kV 170 kV 40 kA Double 2500 A
GHA 40.5 kV 185 kV 31.5 kA Double 2500 A
WIA 52 kV 250 kV 40 kA Single 2500 A
WIB 52 kV 250 kV 40 kA Double 2500 A
CBGS-0 24 KV 125 KV 31,5 KA Single 1600 A
CBGS-0 36 KV 170 KV 31,5 KA Single 1250 A
CBGS-2 52 KV 250 KV 25 KA Single 2000 A
CBGS-2 52 KV 250 KV 25 KA Double 2000 A
CBGS-0
• Gas Insulated Switchgear.
• The CBGS-0 has 3 compartments.
• Up to 36kV, 31.5kA/3s, 1250A at 36kV,
1600A at 24kV, Busbar 2000 A.
• Solid insulated busbar.
• Compact design.
• Single busbar.
• Fixed SF6 circuit breaker.
• Internal arc classification AFLR: 31.5kA/1s.
• Complies with IEC standards.
GMA
• Gas Insulated Switchgear.
• Up to 24kV, 2500A, 31.5kA (3s).
• Circuit breakers are equipped with vacuum interrupters.
• Circuit breaker, switch disconnector or switch disconnector-fuse-combination can be selected.
• Up to four feeders (function units) in one expandable module.
• Compact height 2100mm.
• Double busbar as back-to-back solution (height 2100 mm).
• Complies with IEC standards GOST and China National standard (CNS).
• Internal arc classification AFL(R).
GHA (WS-G in China)
• Gas Insulated Switchgear.
• Up to 40.5kV, 2500A, 40kA (3s) with natural cooling.
• With vacuum circuit breaker.
• Modular design of switchgear panels, single or double busbar.
• No gas handling during erection, extension work and panel replacement.
• Innovative fault-tolerant busbar link “B-link”.
• Intelligent Gas Density System (IDIS).
• Complies with IEC standards, GOST and
China National standard (CNS).
• Internal arc classification AFL (R).
WS (WSA – WSB)
• Gas Insulated Switchgear.
• Up to 36kV, 2500A, 31.5kA (3s).
• With vacuum circuit breaker.
• Modular design of switchgear panels, single or double busbar.
• All live parts are hermetically enclosed and gas.
• Complies with IEC standards, GOST and China National standard (CNS).
• Internal arc classification AFL.
CBGS-2
• Gas Insulated Switchgear.
• The CBGS-2 has 3 compartments.
• Up to 52kV, 25kA/3s, 2000A, 250 kV BIL.
• Monophasic or biphasic applications at 27.5 kV for railways.
• Compact design.
• Single busbar or double busbar.
• Fixed SF6 circuit breaker.
• Internal arc classification AFLR : 25kA/1s.
• Complies with IEC standards.
WI (WIA – WIB)
• Gas Insulated Switchgear.
• Up to 52kV, 2500A, 40kA (3s), 250kV BIL.
• 60kV on request.
• Only 600 mm wide for high performance up to 52 kV.
• Vacuum circuit breaker.
• Modular design of switchgear panels – single or double busbar.
• Three-pole encapsulation technique derived from high voltage technology.
• All live parts are hermetically enclosed and gas-insulated.
• Panels can be extended without switching off the busbar.
• Complies with IEC, ANSI, GOST and China National standard (CNS).
VXA-VXB
• Vacuum circuit breaker.
• Up to 27.5kV.
• Up to 40kA / 100 kA.
• Up to 2500A.
• 16.7/50/60Hz.
• For railways applications.
• 1 or 2 poles.
• Complies with IEC standards.
PAD
• Air Insulated Switchgear.
• Indoor metal-clad switchgear for railway
power supply.
• Up to 17.5kV, 16 2/3Hz.
• Indoor installation.
• With vacuum breaking technology.
• Complies with IEC standards.
GHA Rail (WI-G in China)
• Gas Insulated Switchgear.
• Up to ± 27.5kV, 2500A, 31.5kA.
• Up to 220/325kV BIL.
• 1- or 2-pole version.
• Modular design of switchgear panels.
• Vacuum circuit breaker.
• Complies with IEC and GB standards (China).
• For deliveries to Chinese rail.
WI
• Gas Insulated Switchgear.
• Only 600 mm wide for high performance.
• Up to 52/55kV (± 27.5kV), 2500A, 40kA (3s).
• Up to 250kV BIL.
• 1- or 2-pole version.
• Modular design of switchgear panels.
• Vacuum circuit breaker.
• Complies with IEC standards.
Pole-top switch / disconnector
NE Outdoor DC switches.
• Switches for DC traction lines.
• Up to 3.8kV, 2000A, 25kA.
• Short time rating: up to 5000 A for 3 min.
• Single-pole.
• Earthing switch version, type NE-T also available.
• Complies with IEC standards.
SDR Load Switch for Railway Networks.
• Railway networks at 25kV-50Hz.
• 12.5kA, 1600A.
• Outdoor.
• Maintenance free.
• Vacuum interrupter.
• Magnetic actuator.
• SF6 gas insulation.
• Sealed tank IP67.
• No static or dynamic gaskets.
• Complies with IEC standards IEC 60265-1,classes E3, M2.
TILF Outdoor DC switches.
• Switches for DC traction lines.
• Up to 3.8kV, 3150A, 25kA.
• Short time rating: up to 5000A for 3 min.
• Single-pole.
• Complies with IEC standards.
MV Switchgear Railway Application
Pole-top circuit breaker
CBR Vacuum Circuit breaker for Railway Networks.
• Railway networks at 27.5kV- 50Hz , 25kA, 2000 A.
• Outdoor.
• Maintenance free.
• Vacuum interrupter.
• Magnetic actuator.
• SF6 gas insulation.
• Sealed tank IP67.
• No static or dynamic gaskets.
• Complies with IEC standards IEC 60265-1,classes E3, M2.
Indoor AIS DC switchboard
PIX DC DC switchboard fitted with High speed circuit breaker
• Light railway segment (tram and metro system).
• Up to 1500V DC, 4000 A.
• DC panel based on PIX standard panel with a width of 650mm.
• High speed circuit breaker, disconnector and rectifier panels.
• Rated short-circuit current (peak value): 125kA.
• Complies with EN 50123 or IEC 61992.
On Board Circuit Breaker (Locomotive)
22 CB Vacuum Circuit Breaker for Locomotives and Electric Multiple Units (EMU).
• Railway networks at 25kV AC single phase,50Hz, 16kA, 1000A.
• Outdoor on Locomotive top.
• Minimum maintenance.
• Vacuum interrupter.
• Pneumatic Mechanism.
• Solid insulation (sealed for life vacuum interrupter).
• External Protection IP67.
• Complies with IEC standards.
Motor Control GEMSTART 5.4
Motor Control GEMSTART 5.4
GEMSTART 5 Hand Held Programmer ： GEMSTART 5
Current Transformers (CT)
Voltage Transformers (VT)
IS Limiter
Low Power Current Transformers (LPCT) ：LPCT
Switchgear Monitoring
Internal arc Monitoring Switchgear Monitoring – ILIS
Intelligent Monitoring & Control – GEMVIEW
GemControl SMART Switchgear Controller ：SMART
Walk-in substations (Powerhouse / Power zone)
Mobile substations NOMAD
Mobile Substation – Type NOMAD
* Catalog – 02
SeT Series Air Insulated Switchgear (AIS)
MCSet 17.5
MCSeT 24
PIX
PIX Easy
PIX 50 kA
PIX RoF
GenieEvo
Fluair F400
DNF7
SureSeT
Masterclad
SeT Series Gas Insulated Switchgear (GIS)
GM AirSeT
GM AirSeT Performance
GMA
GHA
CBGS-0
CBGS-2
WS
WI
WI72
SeT Series Air Insulated Switchgear Gas Insulated Switchgear
SM AirSeT
SM6
PremSeT
SeT Series Gas Insulated Switchgear
RM AirSeT
RM6
FBX
Ringmaster
DVCAS
Dry Type Distribution Transformers
Oil Distribution Transformers
Medium Power Transformers
Trihal
Minera Groud mounted
Minera Pole-Mounted
Minera MP
Outdoor Switchgear Pole mounted switchgear & Reclosers
PowerLogic ADVC Controller
PMSet E-Series
PMSet U-series
RL series
PM6
PacT Series Vacuum Circuit Breakers
EvoPacT HVX
EasyPact EXE
EvoPact HVX Embedded pole
EvoPact HVX Assembled Pole
EvoPact HVX-O
VA
VAH
VXA , VXB
VR
PacT Series SF6 Circuit Breakers
VXC (vacuum circuit breaker)
EvoPact LF
EvoPact SF ： SF1 SF2
PacT Series Cradle
L-Frame Cradle
MC Cassette
PMX Cradle
M1-M2 Cradle
PacT Series Switch and Disconnectors
AirPacT
LBSkit
LTRI5-TRI
Smart Sensors
TH110 CL110
VDIS and Partial Discharge Monitoring
VDIS
Partial Discharge Monitoring (PD100)
Vacuum Contactors
CBX 7.2KV 400A
CBX 12KV 400A
CVX 7.2KV 400A
CVX 12KV 400A
SF6 Contactors Rollarc
Rollarc 7.2KV 400A
Rollarc 12KV 400A
Low Power Current Transformers LPCT
Low Power Voltage Transformers LPVT
MV Fuses :
Fusarc CF
Solefuse
Tepefuse
MGK
Protection relays
PowerLogic P1
PowerLogic P3
PowerLogic P5
PowerLogic P7
Easergy MiCOM P30 Series
Easergy MiCOM P40 Series
Easergy Sepam Series 60
Easergy Sepam Series 80
PowerLogic Arc Protection
PowerLogic A1
PowerLogic A3
V321
VIP Relay
VIP40
VIP45
VIP400
VIP410
PowerLogic Control & Monitoring
PowerLogic T300
Flair Fault Passage Indicators
Fault Passage Indicators for Underground Networks
HV/MV transformer
Mineral MP
MV transformer
Trihal transformer
Minera transformers
* Catalog -03
CBGS-0 Primary Distribution Switchgear
Transformer/line protection IX-S
Coupler Riser BR
Disconnector BR
Load break switch BM-S
Load break switch with fuses AS-S
SF1-P & SF1-G: SF6 circuit breakers
DP: Vacuum circuit breaker
Operating mechanism
RI operating mechanism
GMH operating mechanism
RI operating mechanism
CBGS-0 3-position disconnector
CBGS-0 Load break switch
CBGS-0 Load break switch with fuses
Fuse
CF-24/10 CF-24/20 CF-24/25 CF-24/31,5 CF-24/31,5
CF-24/6.3 CF-24/16 CF-24/25 CF-24/25 CF-24/31,5
CF-24/6.3 CF-24/16 CF-24/20 CF-24/25 CF-24/25
CF-24/6.3 CF-24/10 CF-24/16 CF-24/20 CF-24/25
CF-36/4 CF-36/6.3 CF-36/10 CF-36/16 CF-36/20
CF-36/4 CF-36/6.3 CF-36/10 CF-36/16 CF-36/16
CF-36/4 CF-36/6.3 CF-36/10 CF-36/10 CF-36/16
Easergy Arc V125
Easergy Arc V121
Easergy Arc V221
Easergy Arc V321
Easergy HU250 Head unit communication – Gateway
Easergy SC150 MV Switch controller
Easergy LV150 Transformer and LV monitoring
Easergy PS100 Control & Monitoring
Easergy PS50 Monitoring
Voltage presence relay Easergy VD23
Energy management and control
AMP/VLT
IEM3000 series
PM5100/5300/5500
PM8000
ION7400
ION9000
ION8650A
ION8650B
ION8650C
ION8800A
ION8800B
ION8800C
* Catalog -04
CBGS-2 Gas Insulated metal enclosed Switchgear
Current transformers
Type A
Type B
Voltage transformers
Type A
Type B
* Catalog -05
DNF7 Metal-Clad Switchgear Air Insulated Switchgear
* Catalog -06
DVCAS Gas Insulated Switchgear
Incoming Line (I)
Transformer Protection (D)
Riser Function (0)
LPVT
Thermal sensor TH110
Environment sensor CL110
Measurement CTs
VDIS
VDIS with voltage output
PowerLogic Arc Protection
PowerLogic A1
PowerLogic A3
V321
VD23 compact voltage detection relay
EasyLogic Voltage Detector VD25 Compact voltage relay
VDIS-T300
PowerLogic T300
VIP 400
VIP 410
PowerLogic VD25
PowerLogic LV150
* Catalog -07
FBX Gas insulated switchgear
FBX – C / 12 – 25 / C-C-T1
FBX – C / 12 – 25 / C-C
FBX – C / 12 – 25 / C-T1
FBX – C / 12 – 25 / C-T2
FBX – C / 12 – 25 / RE-T1
FBX – C / 12 – 25 / RE-T2
FBX – C / 12 – 25 / C-C-C
FBX – C / 12 – 25 / C-C-T1
FBX – C / 12 – 25 / C-C-T2
FBX – C / 12 – 25 / C-RE-T1
FBX – C / 12 – 25 / C-RE-T2
FBX – C / 12 – 25 / R-RE-T1
FBX – C / 12 – 25 / R-RE-T2
FBX – C / 12 – 25 / C-C-C-C
FBX – C / 12 – 25 / C-C-C-T1
FBX – C / 12 – 25 / C-C-C-T2
FBX – C / 12 – 25 / C-T1-C-T1
FBX – C / 12 – 25 / C-T2-C-T2
FBX – C / 12 – 25 / C-C-C-C-C
FBX – C / 12 – 25 / C-C-C-C-T1
FBX – C / 12 – 25 / C-C-T1-C-T1
FBX – C / 12 – 25 / C-T1-C-T1-T1
FBX – E / 12 – 25 / C-C-T1
FBX – E / 12 – 25 / M1
FBX – E / 12 – 25 / M2
FBX – E / 12 – 25 / M3
FBX – E / 12 – 25 / M4
FBX – E / 12 – 25 / C
FBX – E / 12 – 25 / R
FBX – E / 12 – 25 / RE
FBX – E / 12 – 25 / T1
FBX – E / 12 – 25 / T2
FBX – E / 12 – 25 / CB
FBX – E / 12 – 25 / CBb
FBX – E / 12 – 25 / Sb
FBX – E / 12 – 25 / C-C
FBX – E / 12 – 25 / C-T1
FBX – E / 12 – 25 / C-T2
FBX – E / 12 – 25 / T1-T1
FBX – E / 12 – 25 / T2-T2
FBX – E / 12 – 25 / RE-T1
FBX – E / 12 – 25 / RE-T2
FBX – E / 12 – 25 / C-C-C
FBX – E / 12 – 25 / C-C-T1
FBX – E / 12 – 25 / C-C-T2
FBX – E / 12 – 25 / C-RE-T1
FBX – E / 12 – 25 / C-RE-T2
FBX – E / 12 – 25 / R-RE-T1
FBX – E / 12 – 25 / R-RE-T2
FBX – E / 12 – 25 / C-C-C-C
FBX – E / 12 – 25 / C-C-C-T1
FBX – E / 12 – 25 / C-C-C-T2
FBX – E / 12 – 25 / C-T1-C-T1
FBX – E / 12 – 25 / C-T2-C-T2
Autonomous Protection Relay
MiCOM P114S
DPX-1
Woodward WIC
Fault passage indicators
Flair 21D
Flair 22D
Flair 23D
Flair 23DM
Compass B directional fault passage indicator (Horstmann make)
Voltage detection
VDS-HR
VDS-LR
VPIS
VPIS v2: voltage presence indicating
IVIS : voltage detection
VD23: Voltage detection relay
T200 I remote terminal unit
FBX-C / 24-20 / C-C-T1
FBX-E / 24-20 / C-C-T1
* Catalog -08
F400 Air Insulated Switchgear
F400 36 kV
F400 40.5 kV
AD6 Incomer or feeder
FD6 Feeder with fuses
RD6 Direct incomer
AL6 Direct line incomer
CL6 – GL6 Bus sectioning
TT6 Busbar metering (with earthing)
PT6 Busbar metering (with fuses)
BM6 Current and voltage metering
SF circuit breakers
SF F400 36KV
SF F400 40.5KV
GMH operating mechanism
Auxiliary release F11/F12
Under-voltage release F4
Anti-pumping relay K01
Charging motor M1
Auxiliary switch in charging position S2
Voltage transformers
VRF3
VRF3n/S2
VRP4n/S1
VRP4n/S2
VRP4n
Current transformers
TCF4F/N2
TCF4G/N2
ARM9T/N2
ARL5 Toroid type current transformer
CSH toroid CT
CSH 120 – 120 mm internal diameter
CSH 200 – 200 mm internal diameter.
TLP190 Low-Power Current Transformer
TLP130 Low-Power Current Transformer
TLP 130
TLP 190
Vamp 125
Vamp 121
Vamp 321 (+I/0 units)
Easergy CL110 Environmental Sensor
* Catalog -09
GenieEvo Air-insulated MV Switchgear
Accessories
Cable connectors
Kit ref: GDV-A202 (1 X 3)
Kit ref: GDV-A203 (1 X 6)
Snubber
Snubber is a unique high frequency transient overvoltage surge suppressor for
helping the protection of motors, transformers and generators from steep wavefront,
short rise-time, high magnitude spikes, surges and other transient overvoltage
generated by switching and other sources
Damping resistor
Ferro-Damp for VT Protection
GDV-F128 GDV-F120
GDV-F119
GDV-F116
GDV-F117
GDV-F115
GDV-F121
* Catalog -10
GHA Gas-insulated switchgear
Integrated voltage detecting system IVIS
Three-phase indication “Voltage present” on the IVIS display
IDIS display Display of gas status
Pressure sensor, mounted on self-locking disposal connector
Tee plug and surge arrester
430TB
484TB
K430TB
K484TB
M430TB
M484TB
1x 430TB
2x 430TB
1x 484TB
1x K430TB
2x K 430TB
1x K484TB
1x M430TB
1x M484TB
1x 430TB
1x K430TB
1x M430TB
1x 484TB
1x K484TB
1x M484TB
1x CB 12-630
1x CB 24-630
1x CB 24-1250/2
1x CB 24-1250/2
1x CB 36-630 (1250)
1x CB 36-630
1x CB 36-630 (1250)
1x CB 12-630
1x CB 24-1250/2
2x CB 12-630
1x CB 24-630
1x CB 24-1250/2
2x CB 24-630
2x CB 36-630 (1250)
1x CB 36-630 (1250)
1x CB 36-630
2x CB 36-630
2x CB 36-630 (1250)
1x CB 36-630 (1250)
1x CB 12-630
1x 300PB
1x 804PB
1x K300PB
1x K804PB
1x M300PB
1x M804PB
2x 300PB
2x K300PB
2x M300PB
2x 804TB
2x K804TB
2x M804TB
1x CC 12-630
1x CC 24-1250/2
1x CC 24-630
1x CC 24-1250/2
1x CC36-630 (1250)
1x CC 36-630
1x CC36-630 (1250)
2x CC 12-630
Surge arrester
CSA 12
CSA 24
CSA 36
300SA
800SA
1x CB 24-1250/2
3x CB 12-630
1x CB 24-630
3x CB 24-630
1x CB 24-1250/2
3x CB 36-630 (1250)
1x CB 36-630 (1250)
1x CB 36-630
3x CB 36-630
3x CB 36-630 (1250)
1x CB 36-630 (1250)
RSTI 58XX
RSTI 395X
RSTI 58XX
RSTI 595X
RSTI 68XX
RSTI 695X
1 x RSTI 58XX
1 x RSTI 395X
1 x RSTI 58XX
1 x RSTI 595X
1 x RSTI 68XX
1 x RSTI 695X
1 x RSTI 58XX
1 x RSTI 395X
1 x RSTI 58XX
1 x RSTI 595X
1 x RSTI 68XX
1 x RSTI 695X
1x SET 12
1x SET 24
1x SEHDT 23.1
1x SAT 24
1x SET 36
1x SAT 36
2x SET 12
1x SET 12
2 x CC 24-1250/2
2x CC 24-630
2 x CC 24-1250/2
2x CC36-630 (1250)
2x CC 36-630
2x CC36-630 (1250)
1 x RSTI-CC-58XX
1 x RSTI-CC-395X
1 x RSTI-CC-58XX
1 x RSTI-CC-595X
1 x RSTI-CC-68XX
1 x RSTI-CC-695X
2 x RSTI-CC-58XX
2 x RSTI-CC-395X
2 x RSTI-CC-58XX
2 x RSTI-CC-595X
2 x RSTI-CC-68XX
2 x RSTI-CC-695X
1x SEHDK 13.1
2x CP1250-C
2x CP1250-C
2x CP 630-M16
2x CP1250-C
2x CP 630-M16
1x KU 23.2/23
CSA 12
CSA 24
CSA 36
RSTI-CC-58SAXX05
RSTI-CC-58SAXX05
RSTI-CC-58SAXX05
RSTI-CC-58SAXX05
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
RSTI-CC-58SAXX05
RSTI-CC-58SAXX05
RSTI-CC-58SAXX05
RSTI-CC-58SAXX05
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
RSTI-CC-58SAXX05
RSTI-CC-58SAXX05
RSTI-CC-58SAXX05
RSTI-CC-58SAXX05
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
1x MUT 23.1
1x MUT 23.1
1x MUT 23.1
1x MUT 23.1
1x MUT 23.1
1x MUT 23.1
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
1x MUT 33 + 1x KU 33
1x MUT 33 + 1x KU 33
1x MUT 33 + 1x KU 33.1
1x MUT 33 + 1x KU 33
1x MUT 33 + 1x KU 33.1
2x SEHDT 13
2x SEHDT 23
2x SEHDT 33
2x SET 24
1x SET 24
2x SAT 24
2x SET 36
2x SAT 36
3x SET 12
2x SET 12
1x SET 12
3x SET 24
2x SET 24
1x SET 24
3x SET 36
2x SET 36
1x SET 36
1x SEHDK 23.1
1x SEHDK 13.1
2x SEHDK 13.1
1x SEHDK 23.1
2x SEHDK 23.1
1x SEHDK 36
2x SEHDK 36
1x KU 33
1x KU 23.2/23
1x KU 33.1
1x KU 33
1x KU 33.1
1x KU 33
1x KU 33.1
2x KU 23.2/23
1x KU 23.2/23
2x KU 23.2/23
1x KU 23.2/23
2x KU 33.1
1x KU 33.1
1x MUT 23.1
1x MUT 23.1
1x MUT 23.1
1x MUT 23.1
1x MUT 23.1
1x MUT 23.1
1x MUT 23.1
1x MUT 23.1
1x MUT 23.1
1x MUT 33 + 1x KU 33.1
1x MUT 33 + 1x KU 33.1
1x MUT 33 + 1x KU 33.1
2x 430TB
2x 484TB
2x K430TB
2x K484TB
2x M430TB
2x M484TB
2x 430TB
4x 430TB
2x 484TB
2x K430TB
4x K 430TB
2x K484TB
2x M430TB
2x M484TB
2x 430TB
2x K430TB
2x M430TB
2x 484TB
2x K484TB
2x M484TB
2x CB 12-630
2x CB 24- 1250/2
2x CB 24-630
2x CB 24- 1250/2
2x CB 36-630 (1250)
2 x CB 36-630
2x CB 36-630 (1250)
4x CB 12-630
2x CB 12-630
2x CB 24- 1250/2
4x CB 24-630
2x CB 24-630
2x CB 24- 1250/2
2x CB 36-630 (1250)
4x CB 36-630 (1250)
2x CB 36-630
4x CB 36-630
2x CB 36-630 (1250)
4x CB 36-630 (1250)
6x CB 12-630
2x 300PB
2x 804PB
2x K300PB
2x K804PB
2x M300PB
2x M804PB
4x 300PB
4x K300PB
4x M300PB
4x 804TB
4x K804TB
4x M804TB
2x CC 24-630
2x CC 24-1250/2
2x CC 24-630
2x CC 24-1250/2
2x CC36-630 (1250)
2x CC 36-630
2x CC36-630 (1250)
2x 430CP
2x K430CP
2x CP 1250C
2x CP 1250-C
2x CP 630-M16
2x CP 1250-C
2x CP 630-M16
4x CP 1250-C
2x CB 12-630
2x CB 24- 1250/2
6x CB 24-630
6x CB 24-630
2x CB 24- 1250/2
2x CB 36-630 (1250)
6x CB 36-630 (1250)
2x CB 36-630
6x CB 36-630
2x CB 36-630 (1250)
6x CB 36-630 (1250)
2x RSTI 58XX
2x RSTI 395X
2x RSTI 58XX
2x RSTI 595X
2x RSTI 68XX
2x RSTI 695X
2x RSTI 58XX
2x RSTI 395X
2x RSTI 58XX
2x RSTI 595X
2x RSTI 68XX
2x RSTI 695X
2x RSTI 58XX
2x RSTI 395X
2x RSTI 58XX
2x RSTI 595X
2x RSTI 68XX
2x RSTI 695X
2x SET 12
2x SET 24
2x SEHDT 23.1
2x SAT 24
2x SET 36
2x SAT 36
2x SET 12
2x SET 12
4x CC 12-630
4x CC 24-1250/2
4x CC 24-630
4x CC 24-1250/2
4x CC36-630 (1250)
4 x CC 36-630
4x CC36-630 (1250)
2x RSTI-CC-58XX
2x RSTI-CC-395X
2x RSTI-CC-58XX
2x RSTI-CC-595X
2x RSTI-CC-68XX
2x RSTI-CC-695X
4x RSTI-CC-58XX
4x RSTI-CC-395X
4x RSTI-CC-58XX
4x RSTI-CC-595X
4x RSTI-CC-68XX
4x RSTI-CC-695X
2x SEHDK 13.1
4x CP 1250-C
4x CP 630-M16
4x CP 1250-C
4x CP 630-M16
2x KU 23.2/23
CSA 24
CSA 36
RSTI-CC-58SAXX05
RSTI-CC-58SAXX05
RSTI-CC-58SAXX05
RSTI-CC-58SAXX05
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
RSTI-CC-58SAXX05
RSTI-CC-58SAXX05
RSTI-CC-58SAXX05
RSTI-CC-58SAXX05
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
RSTI-CC-58SAXX05
RSTI-CC-58SAXX05
RSTI-CC-58SAXX05
RSTI-CC-58SAXX05
RSTI-CC-68SAXX10
RSTI-CC-68SAXX
2x MUT 23.1
2x MUT 23.1
2x MUT 23.1
2x MUT 23.1
2x MUT 23.1
2x MUT 23.1
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
2x MUT 33 + 2x KU 33
2x MUT 33 + 2x KU 33
2x MUT 33 + 2x KU 33.1
2x MUT 33 + 2x KU 33
2x MUT 33 + 2x KU 33.1
4x SEHDT 13
4x SET 24
2x SET 24
4x SAT 24
4x SEHDT 23
4x SET 36
4x SEHDT 33
4x SAT 36
6x SET 12
4x SET 12
2x SET 12
6x SET 24
4x SET 24
2x SET 24
6x SET 36
4x SET 36
2x SET 36
2x SEHDK 23.1
2x SEHDK 13.1
4x SEHDK 13.1
2x SEHDK 23.1
4x SEHDK 23.1
2x SEHDK 36
4x SEHDK 36
2x KU 33
2x KU 23.2/23
2x KU 33.1
2x KU 33
2x KU 33.1
2x KU 33
2x KU 33.1
4x KU 23.2/23
2x KU 23.2/23
4x KU 23.2/23
2x KU 23.2/23
4x KU 33.1
2x KU 33.1
´2x MUT 23.1
2x MUT 23.1
2x MUT 23.1
2x MUT 23.1
2x MUT 23.1
2x MUT 23.1
2x MUT 23.1
2x MUT 23.1
2x MUT 23.1
2x MUT 33 + 2x KU 33.1
2x MUT 33 + 2x KU 33.1
2x MUT 33 + 2x KU 33.1
* Catalog -11
GM AirSeT Performance SF6-free Primary Gas Insulated Switchgear
CB Circuit Breaker Cubicle
BS Bus Sectionalizer
BBVTS Busbar Voltage Transformer Module with Switch
CC Cross Coupler
ME Metering Panel
Electromechanical shunt opening releases -Q0-F11, -F12
Electromechanical shunt closing releases -Q0-F21
Charging Motor -Q0-M11
Auxiliary Switch -Q0-S011/-S012
Spring Charging Status Micro Switch -Q0-S2a, -S2b
Operation Counter (CDM)
Mechanical ON/OFF Pushbuttons
Micro Switch on the Mechanical ON/OFF Pushbuttons -Q0-S041/-S042
Mechanical ON/OFF Pushbuttons Blocking Magnets -Q0-Y2, -Q0-Y3
Motor -Q1-M11, -Q8-M11
Auxiliary switch -Q1-S011/-S012, -Q8-S011/-S011
Micro switch -S151, -S152
Interrogation Slider Blocking Magnets -Q1-Y1, -Q8-Y1
Mechanical Key Lock
Micro Switch of Mechanical Key Lock and Earthing Lock Out
GM AirSeT Performance Current Transformer
GM AirSeT Performance Voltage Transformers
Cable Connection
430TB/G or 480TB/G
484TB/G
K430TB/G or K480TB/G
K484TB/G
1 x 430TB/G or 1 x480TB/G
1 x 484TB/G
1 x K430TB/G or 1 xK480TB/G
1 x K484TB/G
1 x 430TB/G or 1 x480TB/G
1 x 484TB/G
1 x K430TB/G or 1 xK480TB/G
1 x K484TB/G
CB 12-630
CB 24-630
CB 24-1250/2
CB 24-1250/2
CB 36-630 (1250)
1 x CB 12-630
1 x CB 24-1250/2
1 x CB 24-630
1 x CB 24-1250/2
1 x CB 36-630 (1250)
1 x CB 12-630
1 x CB 24-1250/2
1 x CB 24-630
1 x CB 24-1250/2
1 x CB 36-630 (1250)
1 x CB 12-630
1 x CB 24-1250/2
1 x CB 24-630
1 x 300PB/G or 1 x 800PB/G
1 x 804PB/G
1 x K300PB/G or 1 x K800PB/G
1 x K804PB/G
2 x 300PB/G or 2 x 800PB/G
2 x 804PB/G
2 x K300PB/G or 2 x K800PB/G
2 x K804PB/G
1 x CC 12-630
1 x CC 24-1250/2
1 x CC 24-630
1 x CC 24-1250/2
1 x CC 36-630(1250)
2 x CC 12-630
2 x CC 24-1250/2
2 x CC 24-630
2 x CC 24-1250/2
2 x CC 36-630(1250)
3 x CC 12-630
3 x CC 24-1250/2
3 x CC 24-630
1 x CB 24-1250/2
1 x CB 36-630 (1250)
CTS 630A 24kV
CTS 1250A 24kV
CTS 630A 24kV
CTS 1250A 24kV
1 x CTS 630A 24kV
1 x CTS 630A 24kV
1 x CTS 630A 24kV
1 x CTS 630A 24kV
1 x SET12
–
1 x SET24
1 x SEHDT 23.1
1 x SAT24
–
2 x SET12
1 x SET12
2 x SET24
1 x SET24
2 x SAT24
2 x SET12
1 x SET12
2 x SET24
1 x SET24
RSTI 58XX
RSTI 395X
RSTI 58XX
RSTI 595X
1 x RSTI 58XX
1 x RSTI 395X
1 x RSTI 58XX
1 x RSTI 595X
1 x RSTI 58XX
1 x RSTI 395X
1 x RSTI 58XX
1 x RSTI 595X
3 x CC 24-1250/2
3 x CC 36-630(1250)
–
–
–
–
1 x CTKS630A 24kV
1 x CTKS630A 24kV
2 x CTKS630A 24kV
2 x CTKS630A 24kV
1 x SEHDK13.1
1 x SEHDK23.1
1 x SEHDK13.1
2 x SEHDK13.1
1 x SEHDK23.1
2 x SEHDK23.1
1 x RSTI-CC-58XX
1 x RSTI-CC-395X
1 x RSTI-CC-58XX
1 x RSTI-CC-595X
2 x RSTI-CC-58XX
2 x RSTI-CC-395X
2 x RSTI-CC-58XX
2 x RSTI-CC-595X
1 x KU 23.2/23
1 x KU 23.2/23
1 x KU 33.1
1 x KU 23.2/23
1 x KU 23.2/23
CTKSA 12kV
CTKSA 12kV
CTKSA 24kV
CTKSA 24kV
CTKSA 12kV
CTKSA 24kV
CTKSA 12kV
CTKSA 24kV
1 x MUT 23.1
1 x MUT 23.1
1 x MUT 23.1
1 x MUT 23.1
1 x MUT 23.1
1 x MUT 23.1
1 x MUT 23.1
1 x MUT 23.1
1 x MUT 23.1
RSTI-CC-58SAXX05
RSTI-CC-68SAXX10
RSTI-CC-58SAXX05
RSTI-CC-68SAXX10
RSTI-CC-58SAXX05
RSTI-CC-68SAXX10
RSTI-CC-58SAXX05
RSTI-CC-68SAXX10
RSTI-CC-58SAXX05
RSTI-CC-68SAXX10
RSTI-CC-58SAXX05
RSTI-CC-68SAXX10
RSTI-CC-58SAXX05
RSTI-CC-68SAXX10
RSTI-CC-58SAXX05
RSTI-CC-68SAXX10
RSTI-CC-58SAXX05
RSTI-CC-68SAXX10
RSTI-CC-58SAXX05
RSTI-CC-68SAXX10
RSTI-CC-58SAXX05
RSTI-CC-68SAXX10
RSTI-CC-58SAXX05
RSTI-CC-68SAXX10
2x 430TB
2x 484TB
2x K430TB
2x K484TB
2x 430TB
4x 430TB
2x 484TB
2x K430TB
4x K 430TB
2x K484TB
2x 430TB
2x K430TB
2x 484TB
2x K484TB
2x CB 12-630
2x CB 24- 1250/2
2x CB 24-630
2x CB 24- 1250/2
2x CB 36-630 (1250)
4x CB 12-630
2x CB 12-630
2x CB 24- 1250/2
4x CB 24-630
2x CB 24-630
2x CB 24- 1250/2
2x CB 36-630 (1250)
4x CB 36-630 (1250)
6x CB 12-630
2x CB 12-630
2x CB 24- 1250/2
2x 300PB
2x 804PB
2x K300PB
2x K804PB
2x M300PB
2x M804PB
4x 300PB
4x K300PB
4x M300PB
4x 804TB
4x K804TB
4x M804TB
2x CC 24-630
2x CC 24-1250/2
2x CC 24-630
2x CC 24-1250/2
2x CC36-630 (1250)
4x CC 12-630
4x CC 24-1250/2
4x CC 24-630
4x CC 24-1250/2
4x CC36-630 (1250)
2x 430CP
2x K430CP
2x CP 1250C
2x CP 1250-C
2x CP 630-M16
4x CP 1250-C
4x CP 1250-C
4x CP 630-M16
RSTI-CC-58SAXX05
RSTI-CC-68SAXX10
6x CB 24-630
6x CB 24-630
2x CB 24- 1250/2
2x CB 36-630 (1250)
6x CB 36-630 (1250)
2x RSTI 58XX
2x RSTI 395X
2x RSTI 58XX
2x RSTI 595X
2x RSTI 395X
2x RSTI 58XX
2x RSTI 595X
2x RSTI 58XX
2x RSTI 395X
2x RSTI 58XX
2x RSTI 595X
2x RSTI 58XX
2x SET 12
2x SET 24
2x SEHDT 23.1
2x SAT 24
2x SET 12
2x SET 12
4x SET 24
2x SET 24
4x SAT 24
6x SET 12
4x SET 12
2x SET 12
6x SET 24
4x SET 24
2x SET 24
2x SEHDT 13
2x SEHDT 23
4x SEHDT 13
4x SEHDT 23
2x RSTI-CC-58XX
2x RSTI-CC-395X
2x RSTI-CC-58XX
2x RSTI-CC-595X
2x RSTI-CC-68XX
2x RSTI-CC-695X
4x RSTI-CC-58XX
4x RSTI-CC-395X
4x RSTI-CC-58XX
4x RSTI-CC-595X
4x RSTI-CC-68XX
4x RSTI-CC-695X
2x SEHDK 13.1
2x SEHDK 23.1
2x SEHDK 13.1
4x SEHDK 13.1
2x SEHDK 23.1
4x SEHDK 23.1
2x SEHDK 36
4x SEHDK 36
2x KU 23.2/23
2x KU 33
2x KU 23.2/23
2x KU 33.1
2x KU 33
2x KU 33.1
2x KU 33
2x KU 33.1
4x KU 23.2/23
2x KU 23.2/23
4x KU 23.2/23
2x KU 23.2/23
4x KU 33.1
2x KU 33.1
RSTI-CC-58SAXX05
RSTI-CC-58SAXX05
RSTI-CC-58SAXX05
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
RSTI-CC-58SAXX05
RSTI-CC-58SAXX05
RSTI-CC-58SAXX05
RSTI-CC-58SAXX05
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
RSTI-CC-58SAXX05
RSTI-CC-58SAXX05
RSTI-CC-58SAXX05
RSTI-CC-58SAXX05
RSTI-CC-68SAXX10
RSTI-CC-68SAXX
2x MUT 23.1
2x MUT 23.1
2x MUT 23.1
2x MUT 23.1
2x MUT 23.1
2x MUT 23.1
´2x MUT 23.1
2x MUT 23.1
2x MUT 23.1
2x MUT 23.1
2x MUT 23.1
2x MUT 23.1
2x MUT 23.1
2x MUT 23.1
2x MUT 23.1
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
RSTI-CC-68SAXX10
2x MUT 33 + 2x KU 33
2x MUT 33 + 2x KU 33
2x MUT 33 + 2x KU 33.1
2x MUT 33 + 2x KU 33
2x MUT 33 + 2x KU 33.1
2x MUT 33 + 2x KU 33.1
2x MUT 33 + 2x KU 33.1
2x MUT 33 + 2x KU 33.1
* Catalog -12
GM AirSeT SF6-free Primary Gas Insulated Switchgear
* Catalog -13
GMA Gas-insulated switchgear
Motor Q0-M11
Shunt release Q0-F11, -F12, -F21
Module Q0-F13
Power consumption – Blocking coils
(-Q0-Y2, -Q0-Y3, -Q1-Y1,-Q8-Y1, -Q11-Y1, -Q12-Y1, -Q15-Y1, -Q16-Y1)
Auxiliary switch, switch position, 18 contact elements (-Q0-S011)
Auxiliary contact on stored energy spring-mechanism for motor control,
4 contact elements (-Q0-S021)
1st auxiliary contact on the ON/OFF pushbutton (-Q0-S041)
2nd auxiliary contact on the ON/OFF pushbutton (-Q0-S042)
3rd auxiliary contact on the ON/OFF pushbutton (-Q0-S045)
Auxiliary contact on the OFF pushbutton (-Q0-S043)
Auxiliary contact on the mechanical lock-out (+S2-S044, optional).
Auxiliary switches -Q0-S011
Auxiliary switch block -Q0-S021 and -S022
Auxiliary contacts -Q0-S041-S043
Motor -Q1-M11,-Q8-M11
Blocking coil -Q1-Y1, -Q8-Y1
Attachment of auxiliary contact S151,-S152
Motor on disconnector (-Q1-M11, recommended basic equipment)
Auxiliary switch, switch position, 14 contact elements (-Q1-S011)
Blocking coil insertion opening (-Q1-Y1)
Motor on earthing switch (-Q8-M11)
Auxiliary switch, switch position, 14 contact elements (-Q8-S011)
Blocking coil insertion opening (-Q8-Y1)
Auxiliary contact on the mechanical interrogating lever for the disconnector/earthing switch (-S151, optional)
Auxiliary contact on the mechanical interrogating lever for the disconnector/
earthing switch (-S152)
GemControl
Operating unit, variant 1
Operating unit, variant 2
Basic unit
Expansion modules
Non-integrated plug-in voltage detecting system
– three-phase edge connector
Non-integrated plug-in voltage detecting system
– three plug-in indicators
* Catalog -14
Masterclad 15 kV Class Medium Voltage Switchgear
6055-31 (VR Vacuum Circuit Breaker–1200 A and 2000 A, 50 kA)
6055-33 (VR Vacuum Circuit Breaker–3000 A, 50 kA and 1200 A, 2000 A, and 3000 A, 63 kA)
6055-34 (Manual Ground and Test Devices)
6055-36 (VR Electric Racking Device)
6055-37 (VR Electrically Operated Ground and Test Device)
6055-38 (VR Manual Ground and Test Device with Selector Switches)
6055-54 (Lift Truck for VR Circuit Breakers)
6055-60 (VR Electrically Operated Ground And Test Device)
6055-62B (Addendum for Integrated Racking Mechanism)
Circuit Breaker Lift Truck ：Typical Lift Truck
Wall-Mounted Test Cabinet (optional)
Masterclad 27 kV Class Medium Voltage Switchgear
27 kV Masterclad Medium Voltage Metal-Clad Switchgear
with Type VR Vacuum Circuit Breakers
VR2701612
VR2701620
VR2702512
VR2702520
VR2704012
VR2704020
* Catalog -15
MCSeT Air-insulated Switchgear
With EvoPacT HVX Vacuum Circuit Breaker
Arc Flash
MCM100
PAS600
TH110
CL110
TH110
BM100
VI110
MC110
Coils
TS110
Operating mechanism
Shunt opening release MX
Electronic Release for MX1/MX2 and XF
Shunt closing release XF
Blocking Magnet on Closing Y1
Operation Counter
Undervoltage Release MN
Low energy Release MITOP
Auxiliary Switch in Switching Position S11/S12
Auxiliary Switch in Charging Position S2
Auxiliary Switch in Charging Position S2-B
Charging Motor M1
Underneath Earthing
Side Earthing
Racking Truck
Racking Truck Motor M2
PM110765
Blocking Magnet on Racking Truck Y0
CVX Contactor
CVX7-C
Voltage Transformers / Current Transformers
ALCE (Turkey)
TRAFINDO (Indonesia)
Narayan Powertech (India)
DYH (China)
Schneider Electric VT
Phase-Earth VRQ3n/S2
Phase-Phase VRC1/S1F VRCR/S1
Phase-Earth VRQ1n/S2
Schneider Electric CT
ARJP1 /N2J ARJP2/N2J ARJP3/N2J ARJA1/N2J ARO1a/N3
ALCE (Turkey)
TRAFINDO (Indonesia)
NPT (India)
ALCE (Turkey)
Transformer ARC2
Transformer ARC3
Zero sequence core balance CT CSH type
CSH 120
CSH 200
LPCT Low Power Current Transducer
TLP160
TLP190
CLP1
CLP3
* Catalog -16
MCSet Air-insulated Switchgear up to 17.5 kV
Current Transformers
MCSE11004-0000
MCSE11004-0001
* Catalog -17
PIX Air insulated switchgear 17.5 kV-50 kA-4000 A
PIX 17-50-1250
PIX 17-50-2000
PIX 17-50-2500
PIX 17-50-3150
PIX 17-50-4000
PIX 12-50-160
HVX Circuit breaker
CVX contactor
Earthing switch
UTX Disconnector truck
MTX Metering truck
Earthing truck
Voltage transformer single pole
Voltage transformer double pole
Voltage transformer on withdrawable truck with fuses
Voltage metering truck for busbar voltage
CT-01/Block type
CT-02/Ring type
Transport truck
* Catalog -18
PIX Easy Air Insulated Switchgear up to 17.5 kV
* Catalog -19
PIX RoF Air Insulated Switchgear up to 17.5 kV
With roll-on-floor EasyPact EXE vacuum circuit breaker
* Catalog -20
PIX Air insulated switchgear
Up to 24 kV, up to 40 kA, up to 4000 A
With EvoPact HVX circuit breaker
PIX 12 PIX 17 PIX 24
Handling trolley
PIX-M7 PIX-M12
CVX 7 CVX 12
L-TRI Air switch disconnector
L-TRI 5 L-TRI 5F
* Catlaog -21
MCset SF6 withdrawable circuit breaker & PIX vacuum withdrawable circuit breaker
Voltage Transformers type phase-earth
Transformer VDF21
Transformer VDC21
* Catalog -22
PremSeT 15 kV Switchgear
TLPU1 (LPCT)
ARU2 (Protection
ARU1 (Metering)
ARC6 (Metering)
LPVT Sensor
LPVT Hub
LPVT Amplifier
Phase concordance unit (VPI62421)
SC100 and SC110 universal intelligent controllers
SC100-A SC100-E SC110-A SC110-E
SC-MI control panels
SC-MI 10 SC-MI 20
400LB
400TB
430TB
440TB
400TB+440PB-XSA
440TB+440PB-XSA
430TB+300SA
K400LB
K400TB
K430TB
K440TB
K400TB+K440PB-XSA
K440TB+K440PB-XSA
K430TB+300SA
CB12-630
CB12-630 + CSA12
CB12-630 + CC12-630
CB24-630
CB24-630 + CSA24
CB24-630 + CC24-630
SET 12
SEHDT 13
SET B + SEHDK 13.1
SET 24
SEHDT 23
SET B + SEHDK 23.1
RSTI L56xx
RSTI L56xx + RSTI-CC-66SAxx10
RSTI L56xx + RSTI CC
L56xx
CSE-A 12630
2xCSE-A 12630
CSE-A 24630
2xCSE-A 24630
FMCTs-400
* Catalog -23
Premset 17.5 kV Compact modular vacuum switchgear
LOCAL CONTROL
• Motor control: SC110
• Control panel: SC-MI20
REMOTE CONTROL
• Embedded intelligent devices
• Switch controller for remote communication network : SC110
• Remote communication network (GSM /GPRS / Ethernet/Radio): R200
• Automatic Transfer System: ATS100
• Backup power supply: PS100
MEASUREMENT
Ammeter: AMP21D
Power Meter: PM5000
Power/Quality Meter: PM8000
FAULT DETECTION
Fault Passage Indicators: Flair 21D/22D, Flair 23DM
Voltage indicators: VPIS, VDS
Voltage relay: VD23
Easergy TH110 wireless thermal sensor
ARU2
ARU1
ARC6
ARC5
VRU1
VRU2
M06A
M12A
AD12 AD13 ARM3 ARJP3 VDF11 VDF21 VDC11 VDC21 VRQ2 VRC2
* Catalog -24
Ringmaster
RN2d-T1 (TLF)
RN2d-T2 (with VIP400 relay)
RN2d-T3 (with VIP410 relay)
RN2d-T4 (with VIP45 relay)
RN2d-T5 (with integrated T300)
RN6d-T1 (with VIP400 relay)
RN6d-T3 (with VIP410 relay)
RE2d-T1 (TLF)
RE2d-T2 (with VIP400 relay)
RE2d-T3 (with VIP410 relay)
RE2d-T4 (with VIP45 relay)
RN2d-T1 TLF
RN2d-T2 VIP400
RN2d-T3 VIP410
RN2d-T4 VIP45
RN6d-T1 VIP400
RN6d-T3 VIP410
RN2d – T5 T300
RN2d-T1S1 RN2d-T2S1 RN2d-T3S1 RN2d-T4S1 RN6d-T1S1 RN6d-T3S1 RN2d-T5S1
RN2d-T1S2 RN2d-T2S2 RN2d-T3S2 RN2d-T4S2 RN6d-T1S2 RN6d-T3S2 RN2d-T5S2
RN2d-T1S3 RN2d-T2S3 RN2d-T3S3 RN2d-T4S3 RN6d-T1S3 RN6d-T3S3 RN2d-T5S3
RN2d-T1C1 RN2d-T2C1 RN2d-T3C1 RN2d-T4C1 RN6d-T1C1 RN6d-T3C1 RN2d-T5C1
RN2d-T1C2 RN2d-T2C2 RN2d-T3C2 RN2d-T4C2 RN6d-T1C2 RN6d-T3C2 RN2d-T5C2
RN2d-T1C3 RN2d-T2C3 RN2d-T3C3 RN2d-T4C3 RN6d-T1C3 RN6d-T3C3 RN2d-T5C3
RMD-F302M RMD-F302
RMD-F303M RMD-F303
RMD-F47-BTM RMD-F47-BTM
RMD-F325 RMD-F325 (3)
RMD-F47-TOP RMD-F47-TOP
RMD-F316M-CB
RMD-F316M-RSW
RMD-F316-CB
RMD-F316-RSW
RMD-F316-TOP
RMD-F318M RMD-F318
RMD-F317 RMD-F317
RMD-F10 RMD-F10
RMD-F12 RMD-F12
RMD-F322M-CB
RMD-F322M-RSW
RMD-F322-CB
RMD-F322-RSW
RMD-F106 RMD-F106
RMD-F321M-CB
RMD-F321M-RSW
RMD-F321-CB
RMD-F321-RSW
RMD-F321-TOP
RMD-F120 RMD-F120
RMD-F319M RMD-F319
RMD-F11 RMD-F11
RMD-F13 RMD-F13
RMD-F320 RMD-F320
RMD-F48 RMD-F48
RMD-F10 RMD-F10
RMD-F12 RMD-F12
RMD-F49 RMD-F49
RMD-F11 RMD-F11
RMD-F13 RMD-F13
RMD-F52 RMD-F52
RMD-F65
RMD-F65-E
RMD-F65-RN6
RMD-F65
RMD-F65-E
RMD-F65-RN6
RMD-F66
RMD-F66-E
RMD-F66-RN6
RMD-F66
RMD-F66-E
RMD-F66-RN6
RMD-F323 RMD-F323
RMD-F885 RMD-F885
RMD-A344 RMD-A344
RMD-F461 RMD-F461
RMD-F328 RMD-F328
RMD-F363 RMD-F363
RMD-F329 RMD-F329
RMD-F364 RMD-F364
RMD-F543 RMD-F543
RMD-F507-RS1 RMD-F507-RS1
RMD-F507-RS2 RMD-F507-RS2
RMD-F507-CB RMD-F507-CB
RMD-F581 RMD-F581
RMD-F941M RMD-F941
RMD-F938M RMD-F938
RMD-F913M RMD-F913
RMD-F910M RMD-F910
RMD-F940M RMD-F940
RMD-F939M RMD-F939
RMD-F912M RMD-F912
RMD-F911M RMD-F911
RMD-A374 RMD-A374
RMD-F495 RMD-F495
RMD-F368 RMD-F368
RMD-F339 RMD-F339
RMD-F335 RMD-F335
RMD-F336 RMD-F336
RMD-F337 RMD-F337
RMD-F338 RMD-F338
RMD-F310-RS1 RMD-F310-RS1
RMD-F310-RS2 RMD-F310-RS2
RMD-F304-RS1
RMD-F304-RS2
RMD-F304-RS1
RMD-F304-RS2
RMD-A305 RMD-A305
RMD-A308 RMD-A308
RMD-A309 RMD-A309
RMD-A422-RS1
RMD-A422-RS2
RMD-A422-RS1
RMD-A422-RS2
RMD-A277 RMD-A277
RMD-A278 RMD-A278
RMD-A279 RMD-A279
RMD-F756M RMD-F756M
RMD-A202 RMD-A202
RN2d-T4S1
RN2d-T4S2
RN2d-T4S3
RN2d-T4C1
RN2d-T4C2
RN2d-T4C3
.. .. ..
* Catalog -25
RM AirSeT Ring Main Unit and Modular Switchgear
CTR2200 59925
EMS58188
RMU-LPCT50-STD-ALL
RMU-LPCT90-VIP-200
RMU-LPCT90-VIP-630
RMU-CT90-200-1-D
RMU-CT90-600-1-D
MF1 59963
EMS58183
CSH120: 59635
CSH200: 59636
PowerLogic Ion6200 ION 6200
200LR
FMCE 250
EASW 12/250 A
CE 24-250
CSE-A 250
93-EE 605-2
RSES-52xx
SEW 12/24
EPKT + EAKT + RSRB
480TB/800PB (or old 400TB)
484TB/804PB
FMCEAs-630
CB 12/24-630
93-EE 705
RSTI-58xx
RSES-54/57
SET 12/24
AB 12-630
RICS-51xx
RSRB
15TS-NSS
800SA
CCSA 12
MUT 23
RSTI-SA
ASA 12
RDA 24
* Catalog -26
RM6 Gas Insulated Ring Main Unit Up to 24 kV
VRT4 screened voltage transformer
VRT7 screened voltage transformer
ARC5 ring current transformer
* Catalog -27
SM AirSeT Air Insulated Switchgear up to 24 kV
Operating Mechanisms
CDT
CDTS (applicable for downstream Earth Switch operation)
CD1
CD2
Electric Motor
• Electric motor (MCH).
Closing Releases
• Shunt trip (XF).
Opening Releases
• Shunt trip (MX1, MX2).
• Undervoltage (MN).
• Low energy (MITOP).
Auxiliary Contacts
• Circuit breaker (8O+ 8C).
• Mechanism charged (1NO+1NC).
Current Transformers
SE CT M A1
SE CT M A2
SE CT M A3
SE CT M A4
SE LPCT R A1
Voltage Transformers
SE VT PE A1
SE VT PE A2
SE VT PP A1
Surge Arresters
PowerLogic P1F – Feeder protection
PowerLogic P1V – Voltage protection
PowerLogic P3U – Universal (Feeder/Motor/Capacitor)
PowerLogic P3F – Feeder protection
PowerLogic P3L – Line protection
PowerLogic P3M – Motor and Differential
PowerLogic P3G – Generator and Differential
PowerLogic P3T – Transformer Differential
PowerLogic P5U – Universal (Feeder/Transformer/Motor)
PowerLogic P5F – Feeder and Generator protection
PowerLogic P5T – Transformer Differential
PowerLogic P5L – Directional and Line protection
PowerLogic P5V – Voltage/Frequency protection
PowerLogic P5M – Motor protection.
S60, S62, S80, S82, S84 – Substation protection
M61, M81, M87 – Motor protection
T60, T62, T81, T82, T87 – Transformer protection
G60, G62, G88 – Generator protection
C60, C86 – Capacitor protection
B80, B83 – Busbar protection
Flair 21D
Flair 22D
Flair 23DM
Control Terminal Block (CTB)
PowerLogic HU250
PowerLogic SC150
* Catalog -28
SM6 modular units
Air insulated switchgear Up to 36 kV
ARJP1
ARM3
ARJP2
ARJP3
CLP2
TLP130
ARM4
VRQ2-n/S1
VRFR-n/S1
VRC2/S1
VRM3-n/S2
VCT24
VRC1/S1
* Catalog -29
SureSeT
Medium Voltage Metal-clad Switchgear
LPVT17A
LPVT24A
EMS59573
P7M12025
* Catloog -30
WI Primary Gas Insulated Switchgear up to 52 kV
WIA 8/12-2/621
WIB 8/12-2/627
WIA 10/12-2/627
WIB 10/12-2/621
WIA 8/24-2/621
WIB 8/24-2/627
WIA 10/24-2/621
WIB 10/24-2/627
WIA 6/36-2/621
WIB 6/36-2/627
WIA 10/36-2/621
WIB 10/36-2/627
WIA 8/38-2/621
WIB 8/38-2/627
WIA 8/40.5-2/627
WIB 8/40.5-2/621
WIA 10/40.5-2/633
WIB 10/40.5-2/626
WIA 8/52-2/626
WIB 8/52-2/633
* Catalog -31
WI72 Gas-Insulated Switchgear up to 72.5 kV
* Catalog -32
WS Gas-insulated switchgear with vacuum circuit-breaker
WSA/B 6/12-2/623
WSA/B 6/12-2/623
WSA/B 6/12-2/623
WSA/B 6/12-2/623
WSA/B 6/12-2/623
WSA/B 6/12-2/623
WSA/B 6/12-2/623
WSA/B 6/12-2/623
WSA/B 8/12-2/623
WSA/B 8/12-2/623
WSA/B 8/12-2/623
WSA/B 8/12-2/623
WSA/B 8/12-2/623
WSA/B 6/17-2/623
WSA/B 6/17-2/623
WSA/B 6/17-2/623
WSA/B 6/17-2/623
WSA/B 6/17-2/623
WSA/B 6/17-2/623
WSA/B 6/17-2/623
WSA/B 6/17-2/623
WSA/B 8/17-2/623
WSA/B 8/17-2/623
WSA/B 8/17-2/623
WSA/B 8/17-2/623
WSA/B 6/24-2/623
WSA/B 6/24-2/623
WSA/B 6/24-2/623
WSA/B 6/24-2/623
WSA/B 6/24-2/623
WSA/B 6/24-2/623
WSA/B 6/24-2/623
WSA/B 6/24-2/623
WSA/B 8/24-2/623
WSA/B 8/24-2/623
WSA/B 8/24-2/623
WSA/B 8/24-2/623
WSA/B 6/36-2/623
WSA/B 6/36-2/623
WSA/B 6/36-2/623
WSA/B 6/36-2/623
WSA/B 6/36-2/623
WSA/B 6/36-2/623
WSA/B 6/36-2/623
WSA/B 6/36-2/623
WSA/B 8/36-2/623
WSA/B 8/36-2/623
WSA/B 8/36-2/623
WSA/B 8/36-2/623
.. .. ..
